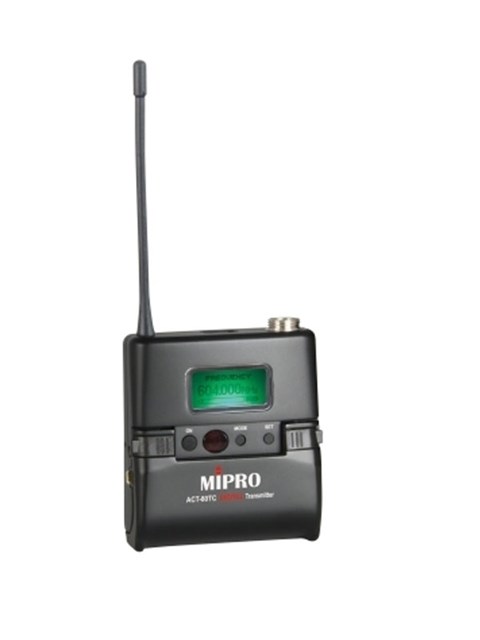

The ACT-80TC rechargeable bodypack transmitter is for use with the ACT-818 and ACT-828 receivers. It features a durable magnesium alloy housing and is the industry's smallest digital bodypack transmitter. It has a detachable antenna and direct and remote mute control. The MIPRO ACT-80TC has an adjustable beltclip and is powered by one 18500 lithium rechargeable battery.
Housing: Magnesium
Mic Capsule: Module Lavalier, Headworn mic
Display: Green backlit LCD displays various parameters
Frequency Range: UHF 480 ~ 934 MHz (country dependent)
Bandwidth: 64 MHz
Encryption: 256 bits
Modulation Mode: New digital modulation
Audio Compression: DSP Inertial coding
RF Power: Output 10 mW / 50 mW switchable (country dependent), 50 Ω loaded
Spurious Emission: < 4 nW
Gain Setting: Six settings. Auto Limiter prevents distortion.
Input Connector: Mute switch, Mini-XLR connector and Antenna.
Dimensions: (W × H × D) 63 × 70 × 25 mm / 2.5 × 2.8 × 1 "
Net Weight: Approx. 85 g / 3 oz
Battery: 1 × ICR 18500 lithium battery
Operating Time: Min. 13 hours
Charger: MP-80 / MP-8
Note: Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
