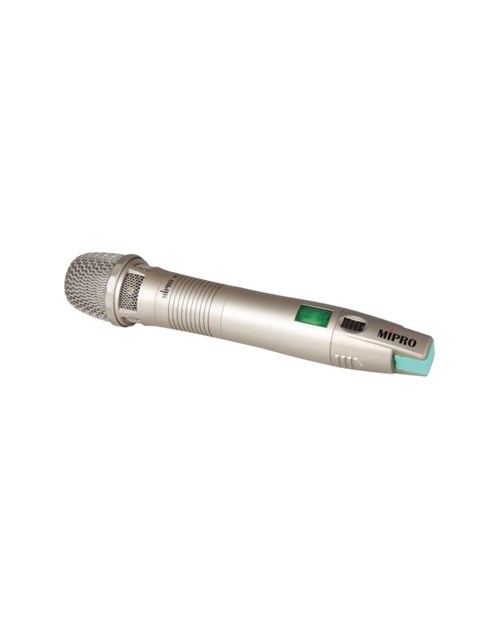

MIPRO ACT-80H Wideband Digital Handheld Transmitter

MIPRO ACT-80H Wideband Digital Handheld Transmitter

  • Innovatively designed metal housing in MIPRO’s distinctive aesthetic and ergonomic style.
  • Standard champagne-color housing. Optional custom-made colors are available.

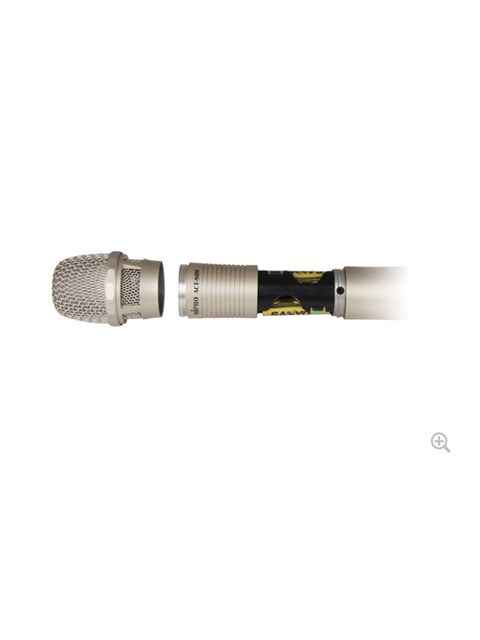

  • Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers.
  • The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound.
  • Patented capsule suspension design virtually eliminates vibration and handling noises.
  • Backlit LCD displays all operational parameter information.
  • Three selectable gain settings: 0 dB (same as microphone sensitivity), +3 dB, +6 dB.
  • Three selectable mute settings: Auto, Manual & Disabled. “Auto” mute activates automatically when handheld transmitter points down towards the ground.
  • The bottom housing with built-in high-efficiency antenna features power switch, mute and setup buttons for programmable gain, limiter, low-cut and RF output power.
  • Patented end-cap cover with color-coded channel identification clips onto the mic and can be reversed to allow shielding of power on/off or mute switches during performance. Detach the end-cap cover for parameters set-up.



SKU: ACT-80H
Brand: Mipro
Department: Audio
Category: Microphones

SHARE


PHP 23,000.00

All prices are in Philippine pesos (PHP) and include VAT. Shipping charges (if any) are extra.


We Ship Nationwide!

We ship orders nationwide at competitive rates via trusted freight/courier to ensure that your order arrives at your doorstep on the time and in excellent condition. Accredited couriers are Lalamove, Grab, LBC, Abest, APcargo (Outside Metro Manila). Rates charges and lead time shall depend upon your chosen accredited courier.


The MIPRO ACT-80H Wireless Handheld Transmitter is for use with the ACT-818 and ACT-828 receivers. It features a durable magnesium alloy housing, a capsule shockmount design which minimizes handling noise, has a backlit LCD display and operates with 2 AA batteries.

The unique flat top multi-layered steel grille for condenser capsules and round top for dynamic capsules protect the capsule against impact, rolling and pop noise. The upper grille is able to be detached easily for cleaning and hygiene practices. The interior grille with fine metal mesh instead of sponge foam minimizes pop noise and effectively ensures sound clarity.

The true condenser capsule exhibits high fidelity, wide dynamic range, fast transient responses, low feedback howling, accurate sound image characteristics, transparent sound quality, and sustains maximum SPL.

Housing: Aluminum
Mic Capsule Module: Interchangeable Condenser or Dynamic
Display: Green backlit LCD displays various parameters
Frequency Range: UHF 480 ~ 934 MHz (country dependent)
Bandwidth: 64 MHz
Encryption: 256 bits
Modulation Mode: New digital modulation
Audio Compression: DSP Inertial coding
RF Power Output: 10 mW / 50 mW switchable (country dependent), 50 Ω loaded
Spurious Emission: < 4 nW
Gain Setting: 6 dB, 3 dB, 0 dB (3 settings). 0 dB = microphone capsule sensitivity
Dimensions: (Ø × L) 51 × 258 mm / 2 × 10 "
Net Weight: Approx. 323 g / 11.4 oz
Battery: 2 × AA alkaline
Operating Time: Min. 12 hours
Note: Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
