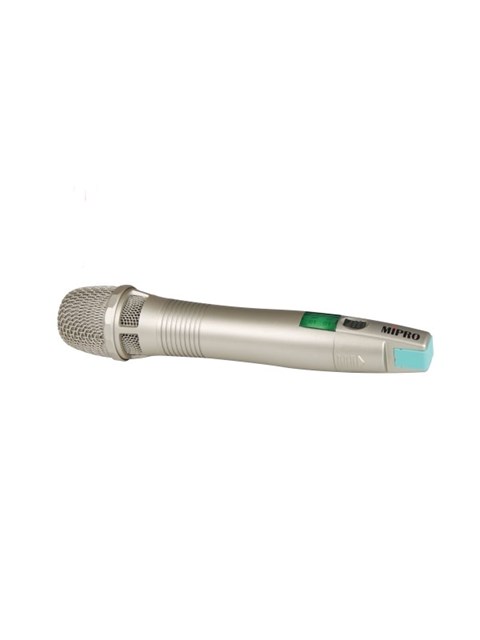

The ACT-80HC rechargeable transmitter is for use with the ACT-818 and ACT-828 receivers. It features a durable magnesium alloy housing, a capsule shockmount design which minimizes handling noise, has a backlit LCD display and is powered by one 18500 lithium rechargeable battery.
Housing: Magnesium
Mic Capsule: Module Interchangeable Condenser or Dynamic
Display: Green backlit LCD displays various parameters
Frequency Range: UHF 480 ~ 934 MHz (country dependent)
Bandwidth: 64 MHz
Encryption: 256 bits
Modulation Mode: New digital modulation
Audio Compression: DSP Inertial coding
RF Power Output: 10 mW / 50 mW switchable (country dependent), 50 Ω loaded
Spurious Emission: < 4 nW
Gain Setting: 6 dB, 3 dB, 0 dB (3 settings). 0 dB = microphone capsule sensitivity
Dimensions: (Ø × L) 51 × 250 mm / 2 × 9.8 "
Net Weight: Approx. 282 g / 9.9 oz
Battery: 1 × ICR 18500 lithium battery
Operating Time: Min. 13 hours
Charger: MP-80 / MP-8
Note: Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
