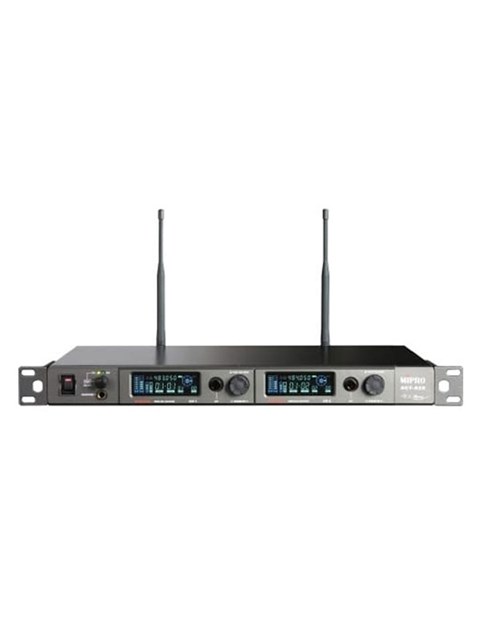

The MIPRO ACT-828 dual channel wideband digital wireless receiver delivers outstanding features at an affordable price. An expanded 64MHz bandwidth ensures optimal flexibility, allowing more interference-free compatible channels to select from. The ACT-828 features full-color Vacuum Florescent Display for clear viewing and one touch ACT™ setup. A single rotary control easily controls all system functions.
MIPRO's ACT systems are built to handle tough conditions, delivering superb RF reliability and transparent audio performance in a wide variety of professional venues and applications, enabling our customers to specify and install our systems with complete confidence.
Frequency Range: UHF 480 ~ 960 MHz (country dependent)
Bandwidth: 64 MHz
Sensitivity: 12 dBμV at S/N ≒ 118 dBA (digital output)
Spurious Rejection: > 85 dB
Audio Sampling: 24-bit / 44.1 kHz Rate
Frequency Response: 20 Hz ~ 20 kHz
Dynamic Range: > 115 dB (A)
Latency: 2.7 ms
Audio Interface: AES digital output, analog transmission
Monitor Output: Headphone monitor connector
Dante Interface: Optional
Power Supply: External adaptor
Dimensions: (W × H × D) 420 × 44 × 245 mm / 17 × 1.7 × 9.6 "
Net Weight: Approx. 2.2 kg / 4.9 lbs
Antenna: Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.
Note: Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
