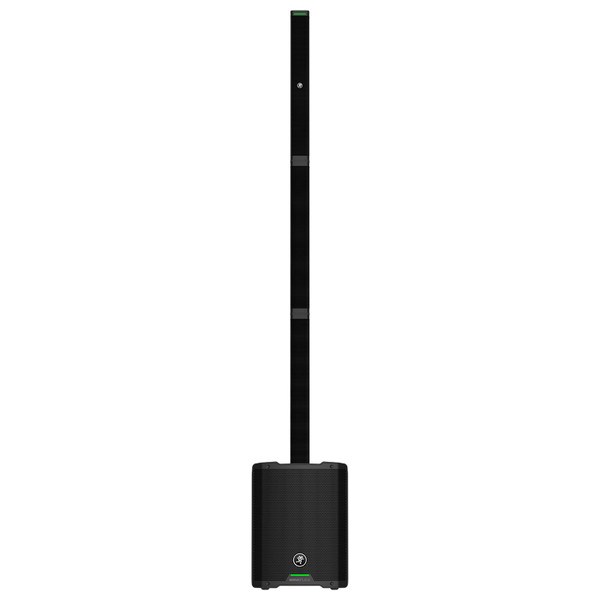

Designed for use in small- to medium-sized venues, the Mackie SRM-FLEX is a portable column array PA system that can easily be transported, configured, and operated by just one person. It breaks down into four sections and comes with a carry bag and a dust cover to make moving from gig to gig simple. The SRM-FLEX is a two-way 1300W sound system consisting of one 10" woofer, six 2" high-frequency drivers, and an onboard 6-channel digital mixer.
The digital mixer features a control-per-function design, 2-band EQ on channels 1 and 2, three application-specific voicing modes, and three choices of reverb. Mic, line, instrument, and aux inputs ensure that you can connect common sources for all sorts of gigs. The SRM-FLEX's built-in Bluetooth capabilities enable you to not only stream music from a mobile device, but also wirelessly mix via a user-friendly app on your iOS or Android mobile device.
- Six 2" high-frequency drivers in a wide-dispersion array along with the 10" subwoofer provide room-filling sound for audiences of up to 100 people
- Amplification power of 1300W peak
- Integrated Bluetooth functionality for wireless music streaming and app control from any iOS or Android device
- Physical mix controls are redundant to the app for seamless switching between mixing on the SRM-Flex or anywhere in the venue
- 6-channel digital mixer with DSP, channel levels, and master volume
- Application-specific voicing modes for music, speech, and live performance
- 2-band EQ on each mono channel
- Three flavors of reverb
- Two XLR-1/4" mic/line/instrument inputs
- Stereo pair of 1/4" line inputs
- 3.5mm stereo aux input
- Balanced XLR line output for connection to an additional SRM-Flex or main mixing console
- Universal power supply with power factor correction

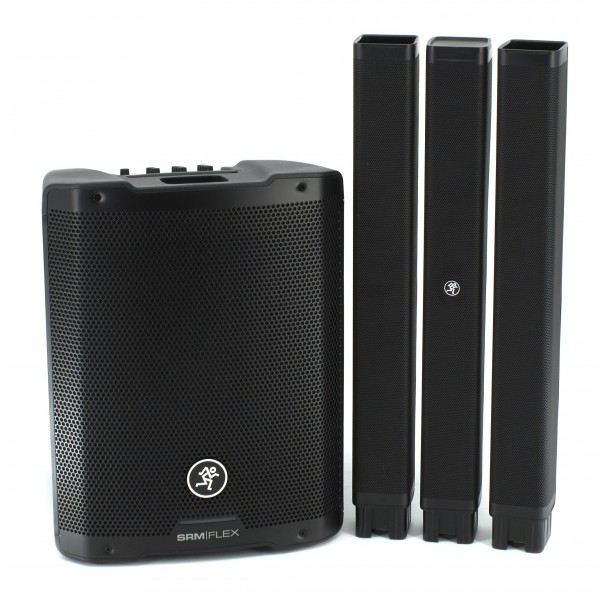

- Breaks down into four sections for easy carriage, setup, and operation by a single person
- Built-in carry handle on subwoofer / mixer module
- Includes a carry bag (for the array module and extenders) and a protective dust cover (for the subwoofer / mixer module)
Mackie SRM-FLEX Specs
Portable PA System
Speaker Configuration 1 x 2-Way Speaker Column with Subwoofer
Number of Input Channels 6 (2 x Mono, 2 x Stereo)
Amplifier Power Rating Total:
1300 W Peak
LF:
1000 W Peak
HF:
300 W Peak
Amplifier Class HF/LF:
Class-D
Speakers
Enclosure Type Speaker:
Sealed
Subwoofer:
Sealed
HF Driver 6 x 2" / 5.08 cm Dome Tweeter
LF Driver 1 x 10" / 25.4 cm Woofer
Magnet LF Driver:
Ferrite
Signal Processing
Crossover 600 Hz, 18 dB/Octave Butterworth (Internal)
EQ 1 x LF Shelf:
-15 to +5 dB at 90 Hz (per Channel)
1 x HF Shelf:
-15 to +5 dB at 6 kHz (per Channel)
Semi-Parametric EQ None
Effects 3 x Reverb
Filters None
Dynamic Processing None
Performance
Frequency Range System:
40 Hz to 20 kHz -10 dB
System:
50 Hz to 20 kHz 3 dB
Maximum SPL 118 dB (Peak)
Coverage Angle 90° H x 40° V
Gain Range Mic/Line Input:
Up to +16 dB
Bluetooth:
Up to +10 dB
I/O Impedance XLR Mic Input:
8 Kilohms (Balanced)
XLR Line Input:
8 Kilohms (Balanced)
1/4" TRS Line Input:
8 Kilohms (Balanced)
1/4" TS Hi-Z Input:
1 Megohms (Unbalanced)
XLR Line Output:
600 Ohms (Balanced)
Protections Infrasonic, Output Limiter, Power Supply, RMS, Thermal
Connectivity
Audio I/O 2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Mic/Line/Hi-Z Input
2 x 1/4" TRS Female Balanced/Unbalanced Line Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Aux Input
1 x XLR 3-Pin Male Balanced Line Output
USB None
Network I/O None
Wireless Connectivity Bluetooth
Bluetooth
Bluetooth 4.2
Pairing Manual
Bluetooth Power Class 1
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 110 W
AC Power Connector 1 x IEC Input
Physical
Transport Options 1 x Carry Case
Subwoofer:
1 x Handle (Top)
Cooling Convection
Construction Material Perforated Metal Grille, Polypropylene, Steel
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 79 x 14.2 x 13" / 200.66 x 36.07 x 33.02 cm (Full Assembly)
Weight 29.6 lb / 13.43 kg
Packaging Info
Package Weight 42 lb
Box Dimensions (LxWxH) 27 x 23 x 20"
